57CDSS2M-C3NNXXBA-05

Products

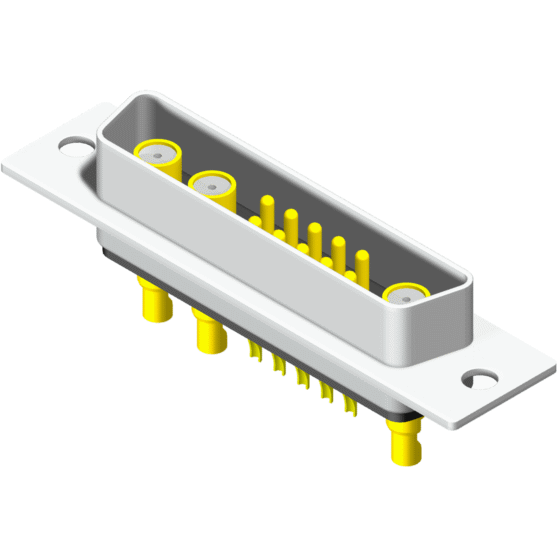

57CDSS2M-C3NNXXBA-05
57CDSS2M-C3NNXXBA-05

Coaxial Conn. Solder Type Male

Specification:

Coaxial Contact Impedance: 50Ω
Coaxial Contact Resiatance: 2.7mΩ Max.
Signal Contact Current Rating: 5.0A
Signal Contact Resiatance: 10mΩ Max.
Diekectric Withstanding Voltage: 1000V AC/Min
Insulation Resistance: 5GΩ Min.
Temperature Rating: -55°C to +125°C

Material

Insulator: PBT thermoplastic, 30% glass filled
UL 94V-0 Rated, Black color
Signal Contact: Copper Alloy
Coaxial Contact: Copper Alloy
Order / Inquiry Information:
  • = Must have
