5DINIS3CNF-32S0WAB01
5DINIS3CNF-32S0WAB01

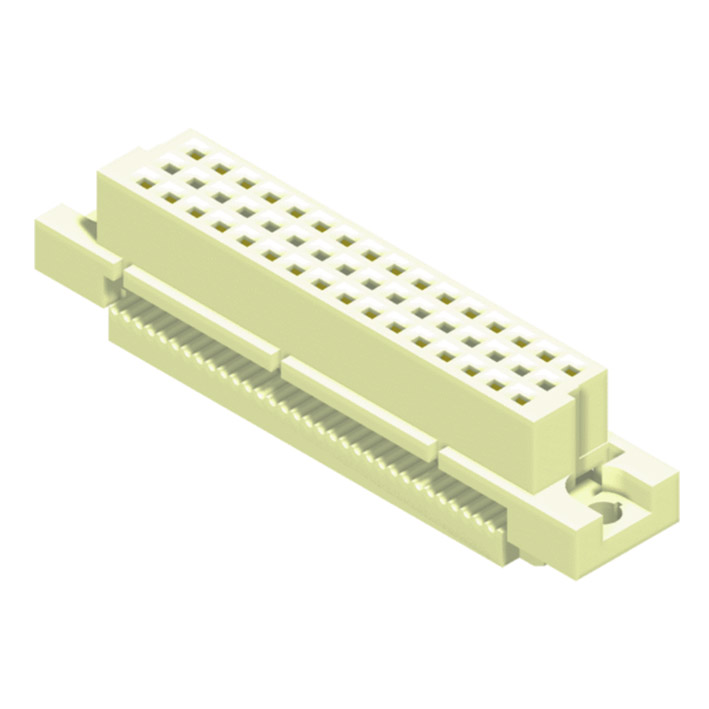

DIN 41612 Short Body IDC Type Female 3 Row 32Pin

Specification:

Current Rating: 3 AMP
Insulation Resistance: 1000MΩ Min. at DC 500V
Dielectric Withstanding Voltage: 1000V AC/minute
Contact Resistance: 30mΩ Max. at DC 100mA
Temperature Range: -40°C to +105°C

Material

Material: P.B.T , UL94V-0
Terminal: Phosphor Bronze
