5DJ13DC01-03T0BLB-01
5DJ13DC01-03T0BLB-01

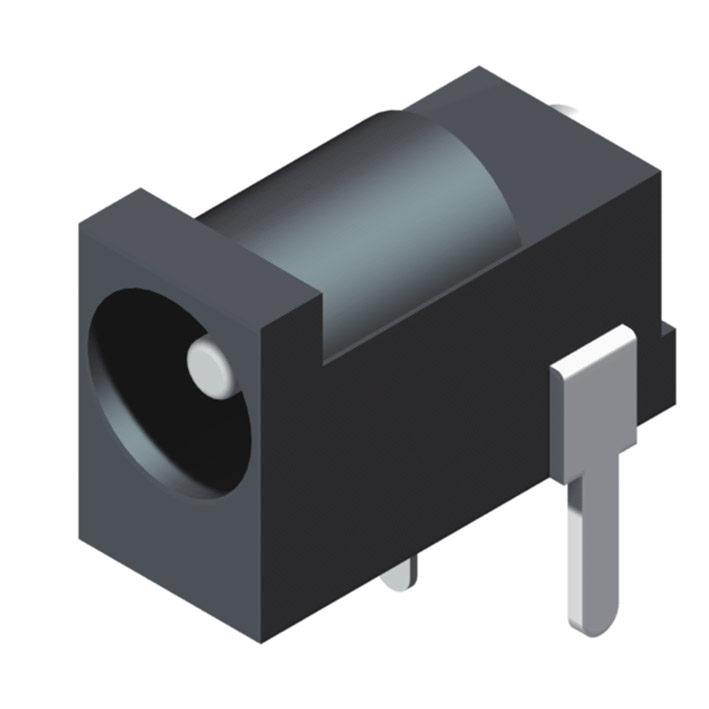

DC Jack Conn. Right Angle W/O Shell 01 Series

Specification:

Current Rating: 2A DC , 1A AC
Contact Resistance: 30mΩ Max.
At AC 100mA Max. 1KHz.
Insulation Resistance: 100MΩ Min. At 500VDC.
Dielectric Voltage: 500V AC/Min.
Insertion Force:3.0Kg Max.
Extraction Force: 0.3Kg Min.

Material

Pin Terminal: Brass T=0.4
Sleeve Terminal: P.B.S T=0.2
Break Terminal: Brass T=0.4
Center Pin: Brass
Insulator: PBT+G.F
Back Cover: PBT+G.F
Order / Inquiry Information:
  • = Must have
