5ECN1R0BX-XXS0XXL-B1

Products

5ECN1R0BX-XXS0XXL-B1
5ECN1R0BX-XXS0XXL-B1

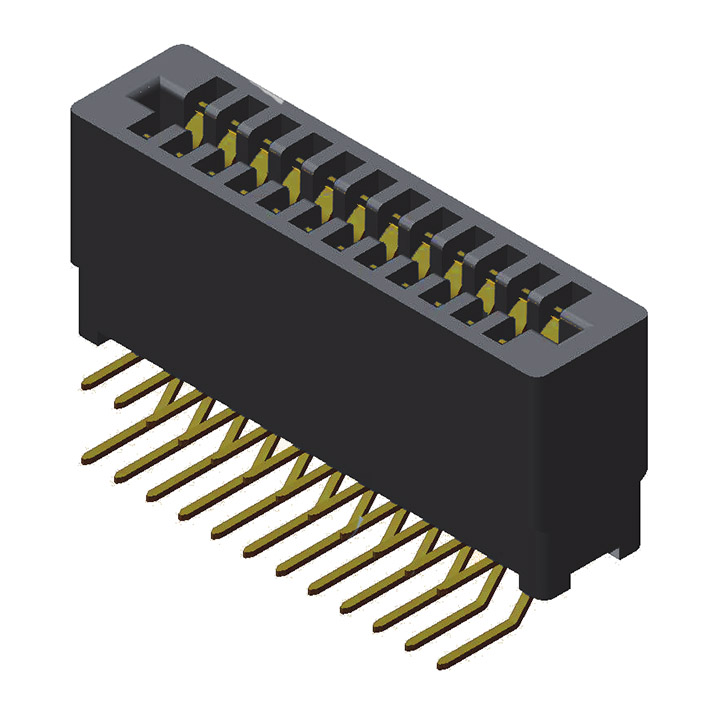

Cardedge 2.54mm Right Angle Type

Specification:

Current Rating: 3 AMP
Insulation Resistance: 5000MΩ Min.
Contact Resistance: 20mΩ Max.
Dielectric Voltage: 800V AC/Minute
Operation Temperature: -55°C to +105°C

Material

Insulator: PBT, UL94V-0
Contact Pin: Phosphor Bronze
Order / Inquiry Information:
