5KTFP-09S0PHL01
5KTFP-09S0PHL01

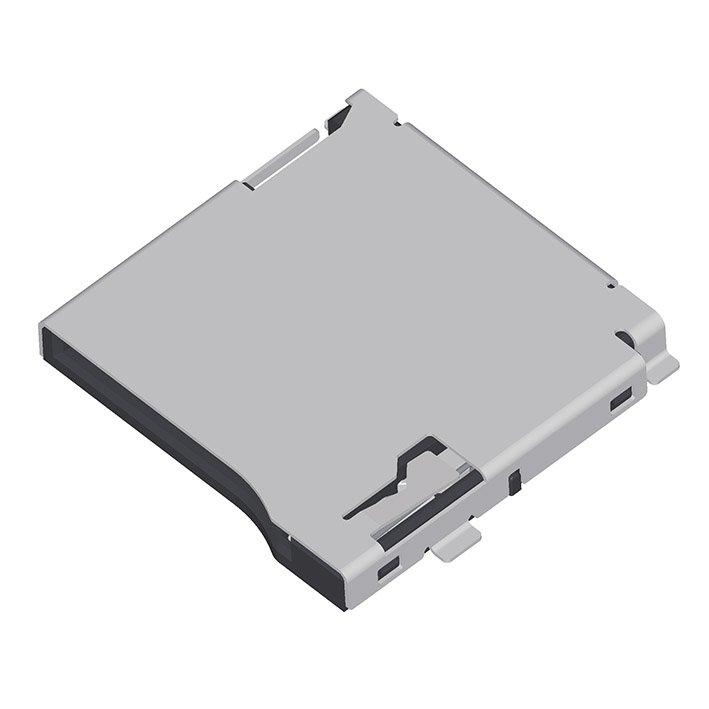

TF Card Holder Push-Push Type 8+1P H=1.85

Specification:

Current Rating: 0.5 AMP
Insulation Resistance: 500MΩ Min.
Contact Resistance: 100mΩ Max.
Dielectric Voltage: 500V AC/Minute
Mating Cycles: 5000 Insertions
Operating Condition: Temperature :-25°C to +85°C

Material

Housing: Hi-Temp Temperature, UL94V-0, Black
Terminal: Copper Alloy
Shell: Stainless
Spring: SWP
Order / Inquiry Information:
