5RJ1DS00N0X-XXXX00L-260-AX

Products

5RJ1DS00N0X-XXXX00L-260-AX
5RJ1DS00N0X-XXXX00L-260-AX

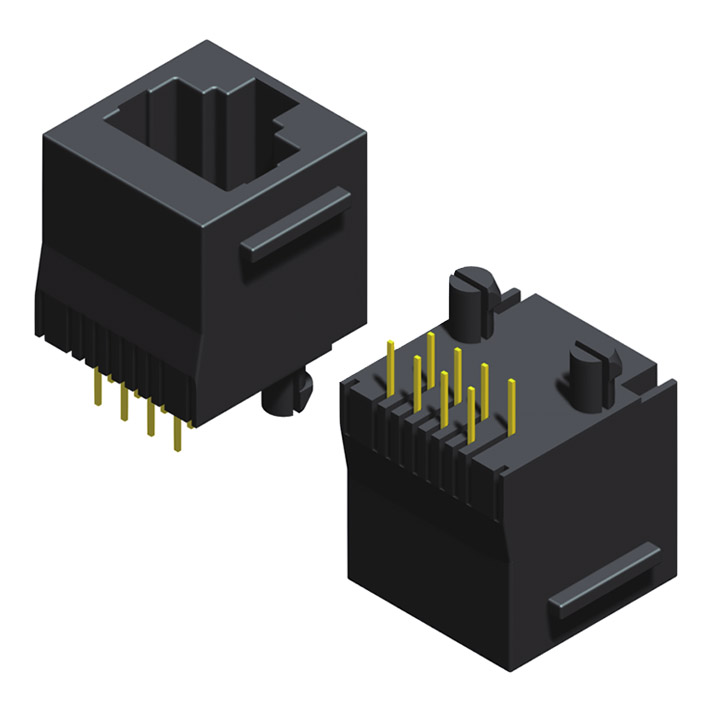

Modular Jack Top Entry H=16.4 W=16.5 260 Series

Specification:

Voltage Rating: 125V
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Withstanding Voltage: 1000V
Temperature: -40°C to 85°C
Durability: 750 Cycles Min.

Material

HOUSING: P.B.T. UL94V-0, Blackor GRAY or White or Yellow
CONTACT: 0.35×0.42 mm thickness Phosphor Bronze,
Plating: Gold plated over Nickel on contact area,
Tin plated over Nickel on solder area.
