5RJ1MR10FDN-88XX00R-846-B1
5RJ1MR10FDN-88XX00R-846-B1

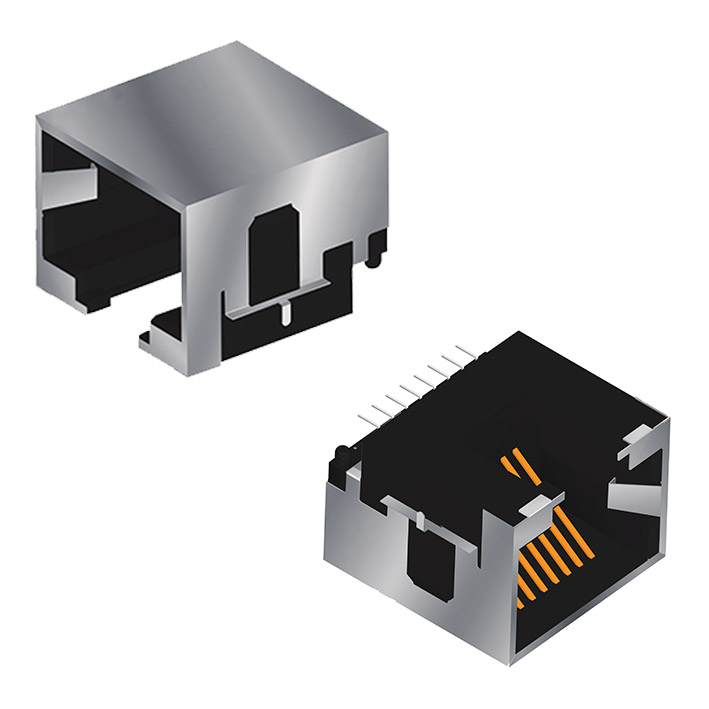

Modular Jack Side Entry H=11.45 W=15.7 846 Series

Specification:

Current Rating: 1.5A
Voltage Rating: 125V AC Rms.
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 40mΩ Max.
Dielectric Voltage: 1000VAC/Minute
OperationTemperature: -20°C to +75°C
Operating: 750 Cycles Min
Storage: -40°C to +85°C
IR Reflow SolderingTemperature: 255°CTo 265°C(5~10 Seconds)

Material

Housing: EngineeringThermoplastic Flammability Rating ,UL94V-0
Contacts: Phosphor Bronze,
Plating: Gold plating over Nickel in contact.
Tin plating over Nickel in solder area
Shield: Brass Plating Nickel Alloy
Order / Inquiry Information:
  • = Must have
