5RPX-XXXXXTLB-XXX-AX
5RPX-XXXXXTLB-XXX-AX

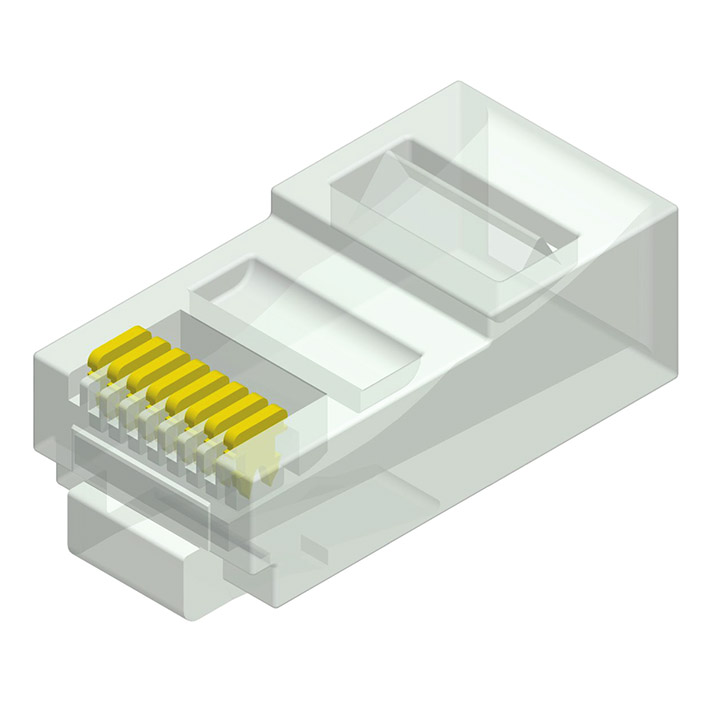

Modular Plug 8/10 Position Long Body

Specification:

Voltage Rating: 125V AC, at 1.5 amps.
Dielectric Withstanding Voltage: 1000V AC.
Insulation Resistance: 500MΩ
TerMination Resistance: 30mΩ Min.
Durability: 750 Cycles.
Temperature Rating: -40°C to +85°C

Material

Housing: PC. UL94V-2, Clean
Contacts: Copper Alloy,
Plated with Gold.

5RPX-8XXXXXLB-801-AX
