5TP762S-2ECN
5TP762S-2ECN

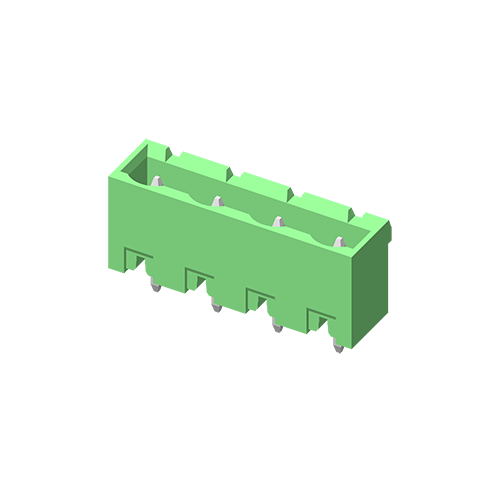

Pluggable Terminal Block 7.62mm Straight Type

Specification:

ELECTRICAL
Standard: UL IEC
Insulation Resistance: 500MΩ
Dielectric Voltage: AC 1600V for one minute
Temp. Range: -40°C ~ +105°C

Material

Housing:PA66, UL94V-0
Pin Header:Copper Alloy, Sn Plated
Order / Inquiry Information:
  • = Must have
