5UM2B04RF-105SDBUAD1
5UM2B04RF-105SDBUAD1

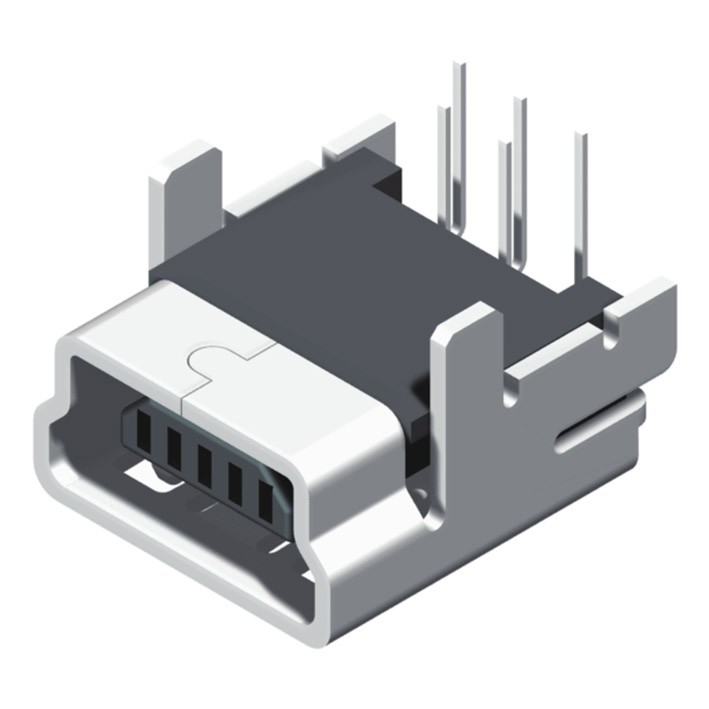

Mini USB B Type Female Dip R/A 5P

Mini USB B Type Female Dip R/A 5P

Specification:

Contact Resistance: 50mΩ. Max.
Insulation Resistance: 100MΩ Min. At 500VDC.
Rated Voltage And Current: 1A At 30VAC Min.
Dielectric Withstanding Voltage: 100V AC/Minute
Durability (Life Test): 1500 Cycles
Insertion Force: 35N Max.
Extraction Force: 7N Min.

Material

Housing: Nylon PA9T+G.F
Pin Terminal: PBS T=0.2
Shield: Brass T=0.4
Center Pastern: Nylon PA9T+G.F
