5UR3B03MF-110GDBUHN1
5UR3B03MF-110GDBUHN1

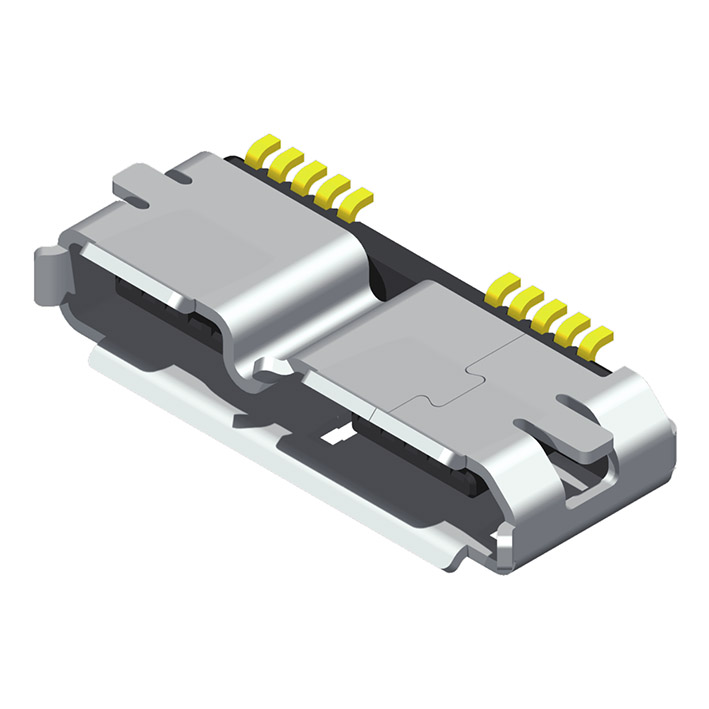

Micro USB 3.0 B Type Female SMT R/A 10P 03 Series

Specification:

Current Rating: 1.8A(Only Pin1,5), 0.25A For Other Pin;
Contact Resistance: 30mΩ Max;
Insulation Resistance: 100MΩ Min;
Dielectric Withstanding Voltage: 100V AC Min.
Operating Temperature: -55°C to +85°C.
Insertion Force: 35N Max;
Withdrawal Force: 8N Min;
Durability: 10000 Cycles Min.

Material

Housing: LCP+50%G.F, UL94V-0
Pin Terminal: Phosphor Bronze
Shiedl: Stainless Steel
