5US2A01RF-104XXXLAC1
5US2A01RF-104XXXLAC1

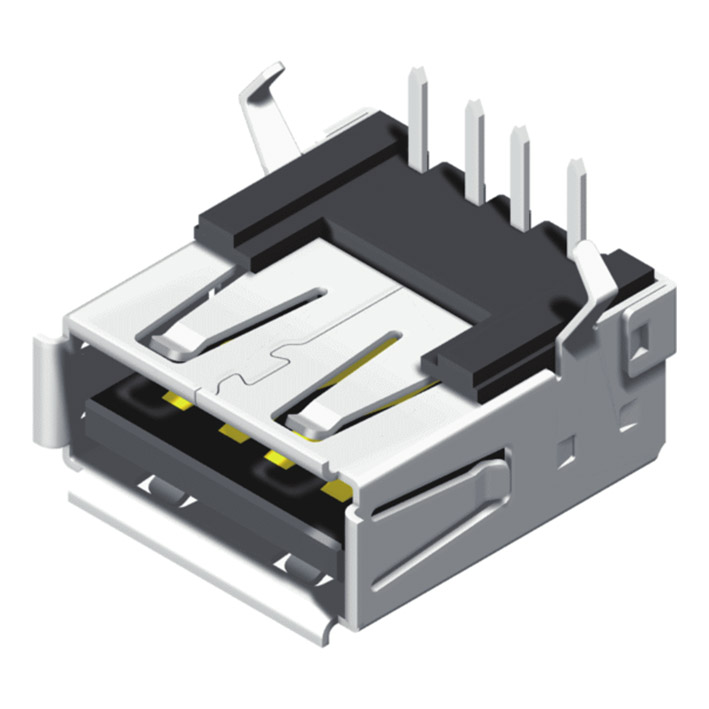

USB A Type Female Dip R/A 4P

Specification:

Current Rating: 1.5 AMP
Contact Resistance: 50mΩ Max.
Insulation Resistance: 1000MΩ Min.
Dielectric Voltage: 500V AC/Minute
Operation Temperature: -20°C to +85°C
Durability: 1500 Cycles
Insertion Force: 35N Max.
Withdrawal Force: 10N Min.

Material

Insulator: Nylon 9T+G.F. or PBT+G.F.
Contact Pin: Phosphor Bronze
Shield: Brass
Order / Inquiry Information:
  • = Must have
