5US2A03RF-104S0XLAD1
5US2A03RF-104S0XLAD1

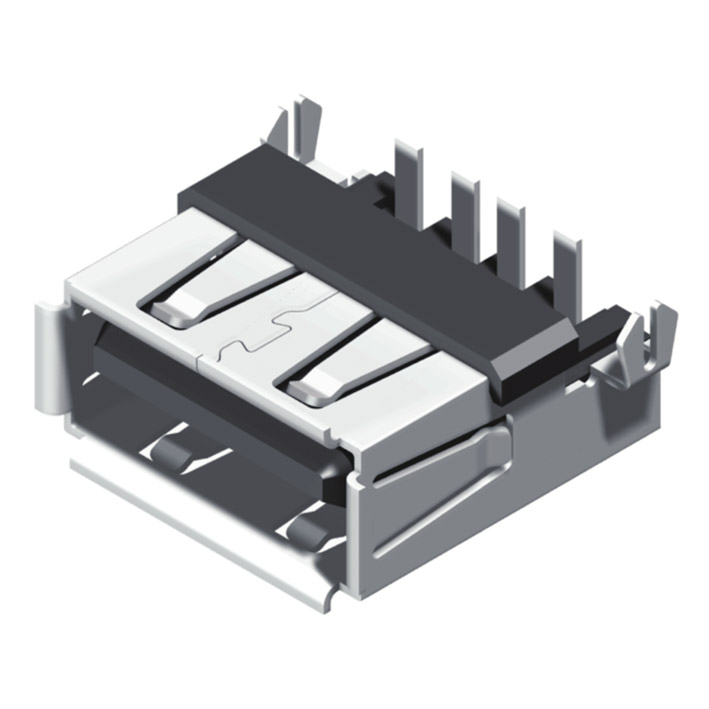

USB A Type Female Reverse Flat Dip R/A 4P

Specification:

Contact Resistance: 30mΩ. Max.
Insulation Resistance: 1000MΩ Min. At 500VDC.
Rated Voltage And Current: 1.5A At 250VAC Min.
Dielectric Withstanding Voltage: 500V AC/Minute
Durability (Life Test): 1500 Cycles
Insertion Force: 35N Max.
Extraction Force: 10N Min.

Material

Housing: Nylon PA9T+G.F
Pin Terminal: Phosphor Bronze T=0.25
