5US2A09RM-104S0XLAC1

Products

5US2A09RM-104S0XLAC1
5US2A09RM-104S0XLAC1

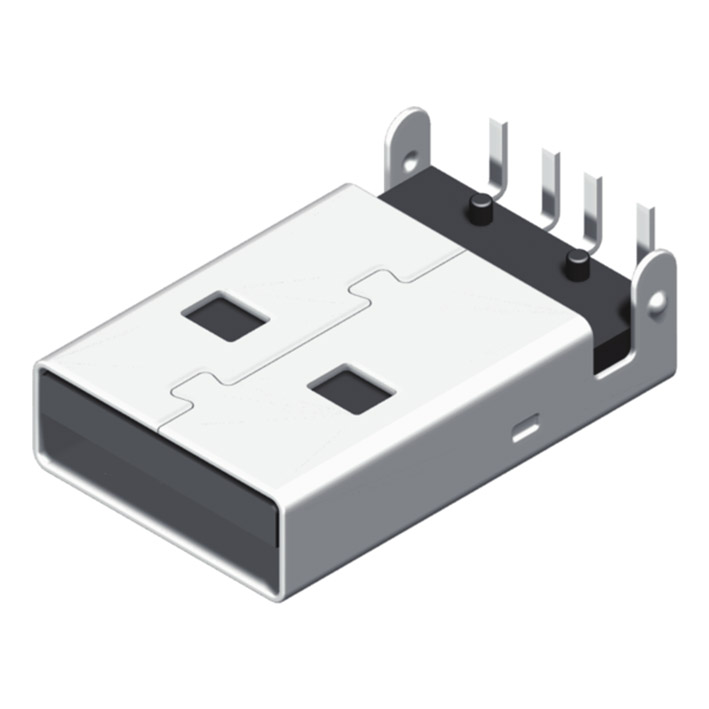

USB A Type Male Dip R/A 4P 09 Series

Specification:

Contact resistance:30mΩ Max.
Insertion Resistance:1000 MΩ Min.At 500V DC.
Rated Voltage and Current: 1.5A At 250V AC Min.
Dielectric Withstanding Voltage: 750V AC(rms)/Minute
Durability(Life Test): 1500 Cycles
Insertion Force:35N Max.
Extraction Force:10N Min.

Material

Housing: Nylon PA9T G.F
Pin Terminal: Brass E-H T=0.25
Order / Inquiry Information:
  • = Must have
