5US2A11RM-104S0XUAD1
5US2A11RM-104S0XUAD1

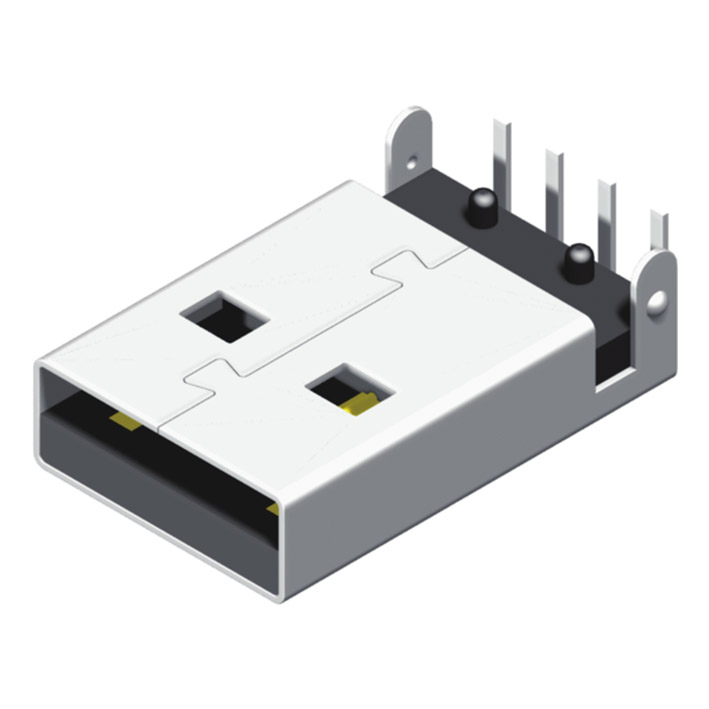

USB A Type Male Reverse Dip R/A 4P

Specification:

Current Rating: 1.5 AMP
Voltage Rating: 250V AC
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 30mΩ Max
Dielectric Voltage: 750V AC/Minute
Durability: 1,500 Cycles
Insertion Force: 35N Max
Withdrawal Force: 10N Min

Material

Insulator: PA9T, UL94V-0
Contact Pin: Brass
Shield: SPCC, Nickel Plated
