5US2B04DF-104XXXLAD1
5US2B04DF-104XXXLAD1

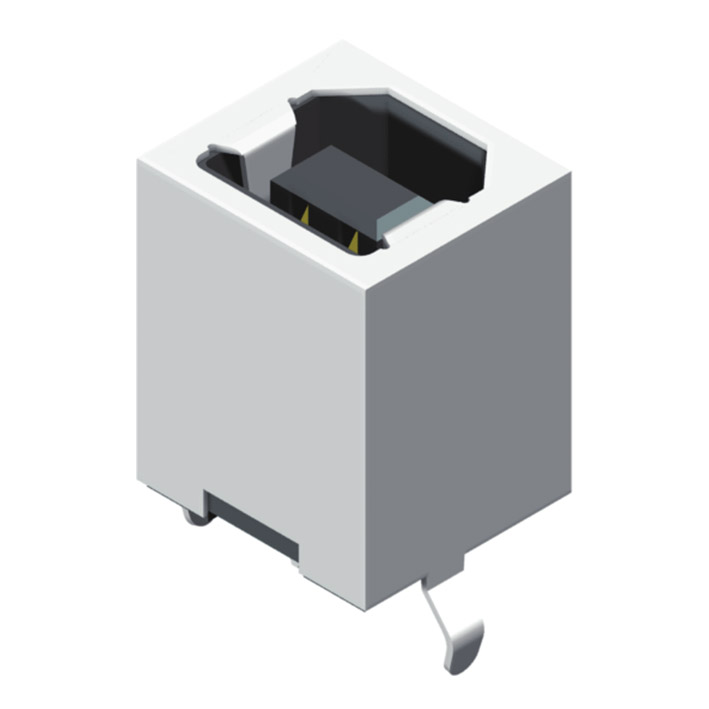

USB B Type Female Dip 180° 4P

Specification:

Current Rating: 1.5 AMP
Voltage Rating: 250V AC
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 30mΩ Max
Dielectric Voltage: 500V AC/Minute
Durability: 1500 Cycles
Insertion Force: 35N Max
Extraction Force: 10N Min

Material

Insulator: PBT, UL94V-0
Contact Pin: Phosphor Bronze
Shield: Brass
