5W1001G1-2XXG0XXUA01
5W1001G1-2XXG0XXUA01

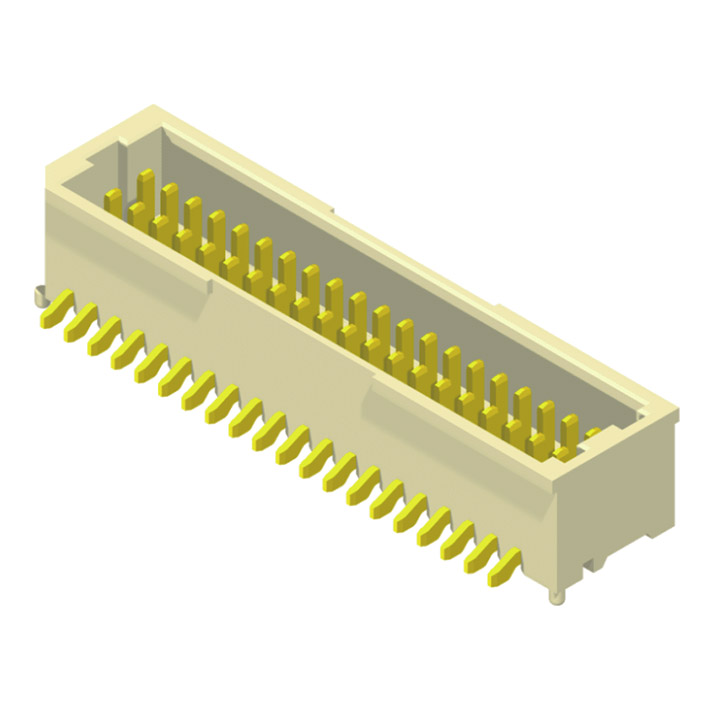

1001 Series 1.0mm Wafer SMT Straight Type 2 Row With Post

Specification:

Current Rating: 1A AC/DC
Contact Resistance: 20mΩ Max.
Insulation Resistance: 100MΩ Min.
Dielectric Voltage: 500V AC/Minute
Operation Temperature: -25°C to +85°C

Material

Insultor: Hi-Temp. Thermoplastic, UL94V-0
Contact Pin: Copper Alloy
Order / Inquiry Information:
  • = Must have
