62SMBR03-MXG0WB01

Products

62SMBR03-MXG0WB01
62SMBR03-MXG0WB01

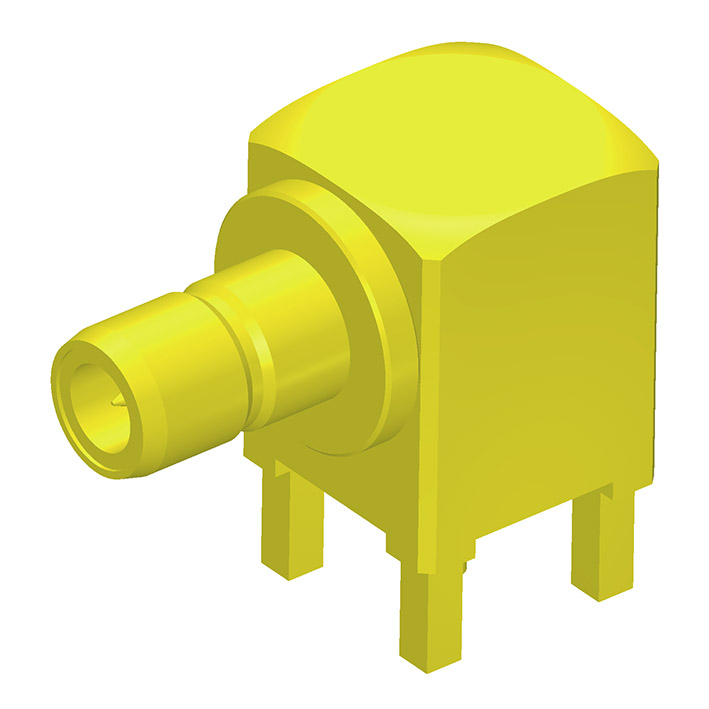

SMB Conn. Right Angle Type 03 Series
Specification:
Impedance:50Ω
Frequency Range: DC~4 GHZ V.S.W.R:≦1.50
Working Voltage: 335V
Insulation Resistance:≧1000MΩ
Contact Resistance:Center Contact≦6.0MΩ
Outer Contact≦1.0MΩ
Dielectric Voltage: 1000V AC/Minute
Operation Temperature: -40°C to +85°C
Mating: PUSH-PULL
Durability: ≧500 Mattings.
Engagement: ≦14.0 lbs
Disengagement: ≧2.0 lbs
Material
Center Contact: Brass
Body: Brass
Insulator: Teflon
SQ Body: Brass
